Compaction Machine

Our Product

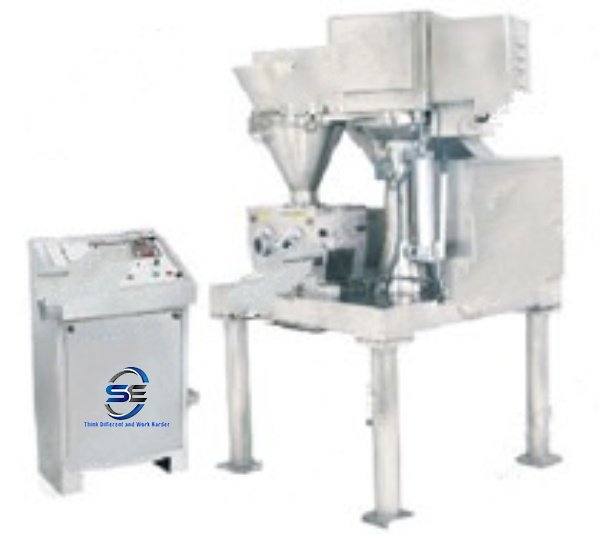

ROLL COMPACTOR - LAB MODEL (Plain & Water jacketed Model)

ModelSEM-LAB RC – 25
Roll Speed2-29 RPM Variable
Output *2 to 5 Kgs./Hr.
Screw Speed5-86 RPM Variable
Roller Motor3 HP / 3 Ph.
Feeder Motor2 HP / 3 Ph.

ROLL COMPACTOR MACHINE (COMMERCIAL)

ModelSEM-RC-200/50SEM-RC- 200/75SEM-RC- 200/100
Output20 to 60 Kgs./Hr.*75 to 100 Kgs./Hr.*100 to 250 Kgs./Hr.*
Roll sizeØ 200 mm x 50 mmØ 200 mm x 75 mmØ 200 mm x 100 mm
Roll speed5 to 25 RPM5 to 25 RPM5 to 25 RPM
Feed screw speed10 to 60 RPM10 to 60 RPM10 to 60 RPM
Roll drive Motor5Hp/960RPM/3 Ph.5 Hp/960RPM/3 Ph.7.5Hp/960RPM/3 Ph.
Feed screw drive motor3 HP / 1440 RPM / 3 Ph.

* Output depending upon the material characteristics & Its nature.

ROLL COMPACTOR cGMP

ModelSEM-RC-200/150SEM-RC- 200/200
Output100 to 350 Kgs./Hr*150 to 400 Kgs./Hr.*
Roll sizeØ 200 mm. x 150 mmØ 200 mm. x 200 mm
Roll speed5 to 20 RPM
Feed screw speed5HP/1440RPM/3Ph
Roll drive Motor10 Hp. / 960 RPM / 3 Ph.
Feed screw drive motor5HP/1440RPM/3Ph

* Output depending upon the material characteristics & Its nature.

  • Totally cGMP Compact design availably in plain water jeckted & Flame proof model.
  • It’s improve the bulk density of material.
  • It’s improves uniform mixing of material.
  • It’s achieve better granulation of sieves analysis.
  • It’s produce uniform particle size range of granules.
  • Various types of roll available to achieve maximum bulk density of out put.
  • Specially designed feeding system consisting of hopper pre-densifer & variable speed drive unit.
  • Feeding unit can hydraulically lift by hydraulic pump for easy cleaning.
  • Specially design provide in the roller to prevent powder sticking on the roll.
  • Pre-compression chamber guides the powder without any slippage or leakage.
  • To prevent major accident the roll is designed to rotate reverse & forward when cleaning.
  • Specially limit switch is provided to prevent major accident.
  • Main roll drive is design with twin shaft gear box coupled with coupling to protect roll drive unit there fore perfectly synchronizing the roll with a constant torque
